Liquid Filling With Conduction Sealing Machine

Filling Range : 50 ml to 1 Liters (With the help of Change Parts)

Output : 25 to 30 bottles per minute for 1 Liter. (Depending upon Liquid and Bottle)

Applicable Industry : Juice, Dairy Products and relevant

Description:

The automatic volumetric liquid filling and conduction machine is compact and highly efficient machine with elegant look. This multi function multi featured machine meets the custom requirements of filling of liquid material in Pet and HDPE bottles.

Category:

Operation:

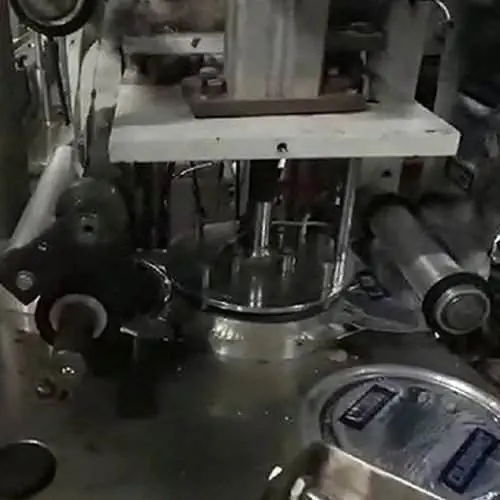

Empty bottles are being received through the turntable / Conveyor. Next Operation is filling through Syringes. Bottles are conveyed through conveyor under the filling syringe nozzles. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hallow shaft, geared motor controlled by an Ac frequency drive. Then bottles comes under conduction unit where Aluminium Foil or Laminate Roll get cut through cutting die and conduction done by heating.

Features :

  • The filling & sealing stations have common base frame making the size compact which saves space. These machines are preferred for large capacities with consistent filling volume
  • Heavy duty base with robust construction off S.S. matt finished body
  • The machines are suitable for filling & sealing of products like syrups, suspensions & various viscous liquids
  • Microcontroller or PLC based system with latest technology
  • Auto Cup Feeding System
  • No container No fill arrangement
  • No container No sealing arrangement
  • Easy and accurate adjustments of filling and capping desired quantity with the help of change parts
  • Various models available as per output speed requirement
  • Machine can be synchronized with Washing and Capping machine
  • Suitable for Dairy, Juice, Industries
  • Maximum used for Juice Packing, Lassi Packing, Flavored Milk Packing, Butter Milk Packing, Water Glass Packing, Yogurt Packing, Adhesive Packing, Chemical Packing, Grout Packing

We also offer Injectable Liquid Filling with Rubber Stoppering Machine.  To know more click here.

Reviews

There are no reviews yet.

Be the first to review “Liquid Filling With Conduction Sealing Machine”

Your email address will not be published. Required fields are marked *

Technical Details

Number Of Filling Head 1 / 2
Number of Inner Head NA
Number of Sealing Head 1 / 2
Number of Applicator NA
Production / Rate 30 To 35 / 45 To 55 Container /Min (Depend On Fill Size And Material Characteristic)
Fill Size 5 ml to 1000 ml (With the Help of Change Parts)
Type of Product Plastic, Glass, HDPE vials
Type of Filling Material Liquid, Paste, Semi Solid
Type of Seal Lemi Film, Plastic Film, Aluminium Foil, Wad
Type of Label NA
Label Specification NA
Material Contact Part SS 316
Material Non-Contact Part SS 304, SS Cladded MS Body Plate
Type of Technology Pump / Syringe, Linear, Controller Based / PLC Based
