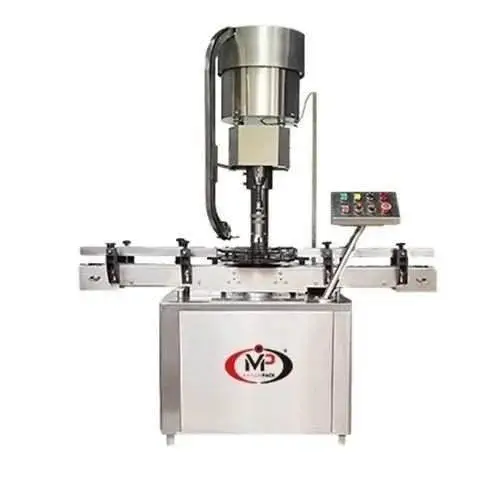

Automatic Capping Machine
Suitable for ROPP Capping, Screw Capping, CRPP Capping, Crown Capping, Dosing Cup Sealing
Suitable for sealing all types of Bottles and Containers and Jars for Pharmaceuticals, Ayurvedic, Nutraceutical, Dairy, Juice, Chemical, Food, Edible Oil Lubricant Oil, Cosmetics, Pesticides and Agro Industries.
Automatic Capping Machine is a system from MachPack that is specially designed for ROPP Capping, Screw Capping, CRPP Capping, Crown Capping and Dosing Cup Sealing. This ROPP Capping Machine features a unique hopper to increase the storage capacity of a bowl and has a microcontroller based system with the latest technology. This is the best machine to use for capping bottles of any type and size. This Automatic Multi Head Bottle Capping Machine is perfect for any business that needs to cap their bottles quickly and effectively. It is not only fast but also can save your business money in the long run because it has a built-in, easy-to-use design. It is suitable for Plastic, Aluminium, Rubber Stopper, Inner Plug, Dosing Cup, Crown, Lug, CRPP, Seal, Lid type of seal. The products suitable are Plastic, Glass, HDPE bottles, tins and containers. It is majorly used in Pharmaceuticals, Ayurvedic, Nutraceutical, Dairy, Juice, Chemical, Food, Edible Oil Lubricant Oil, Cosmetics, Pesticides and Agro Industries.
Features Automatic Capping Machine:
- Heavy duty base with robust construction off S.S. matt finished body
- Suitable for ROPP, and Screw Caps (Plastic and Aluinium) with changeover of Sealing Heads.
- Microcontroller based system with latest technology
- Multiple size capping with arrangement of different change parts
- Specially designed hopper is to increase storage capacity of bowl
- No container No capping arrangement
- Machine can be synchronized with Filling , Visual Inspection, and Induction Sealing machine
| Direction | Left to Right | ||
| Production Rate/ Min | Upto 30 to 50 | Upto 60 to 70 | Upto 80 to 100 |
| 100 ml Containers | Bottles/ Min | Bottles/ Min | Bottles/ Min |
| No. of Sealing Heads | 1 | 4 | 6 |
| ROPP Cap Size | Diameter | 19 mm to 38 mm | |
| Height | 15 mm to 20 mm | ||
| Screw Cap Size | Diameter | 18 mm to 56 mm | |
| Height | 15 mm to 30 mm | ||
| Container Size | Round | Ø 22 mm to Ø 100 mm | |
| Respective | Height : 58 mm to 240 mm | ||
| Flat/Square | Length : 15 mm to 100 mm | ||
| Width : 10 mm to 50 mm | |||
We also offer Automatic Auger Powder Filling Machine.To know more click here.
You must be logged in to post a review.
Technical Details
| Number Of Filling Head | NA |
| Number of Inner Head | NA |
| Number of Sealing Head | 1 / 4 / 6 / 8 |
| Number of Applicator | NA |
| Production / Rate | 30 to 50 / 60 to 80 / 80 to 100 / 100 to 120 Bottle /Min (Depend On Bottle Shape, Cap Size and Cap Type ) |
| Fill Size | NA |
| Type of Product | Plastic, Glass, HDPE bottles, tins and containers |
| Type of Filling Material | NA |
| Type of Seal | Plastic, Aluminium, Rubber Stopper, Inner Plug, Dosing Cup, Crown, Lug, CRPP, Seal, Lid |
| Type of Label | NA |
| Label Specification | NA |
| Material Contact Part | SS 316 |
| Material Non-Contact Part | SS 304, SS Cladded MS Body Plate |
| Type of Technology | Linear / Rotary, Controller Based / PLC Based |
