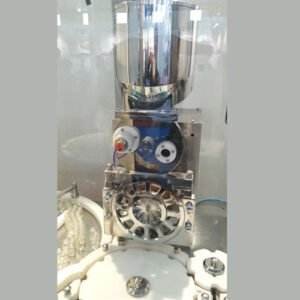

Automatic Auger Powder Filling Machine

Filling Range: 10 gm to 1 Kg (with the help of Change Parts)

Output: 20 to 60 bottles per minute. (Depending upon Powder Characteristics and Filling Size)

Applicable Industry :Pharmaceutical, Ayurvedic, Nutraceutical, Cosmetic, Food, Agrochemical and relevant

Suitablefor Different Types of Material like Pharmaceutical Dry Powder Syrup, Protein Powder, Ayurvedic Powder, Granulesm Food Products and relevant

Description :

The automatic powder and granules filling machine is compact and highly efficient machine with elegant look. This multi function multi featured machine meets the custom requirements of filling powder and granules material in glass, plastic and aluminum containers.

Operation of Automatic Auger Powder Filling Machine:

Automatic Auger Type Powder Filling Machine is a compact model used for filling Powder into bottles or Jar. The incoming dry bottle (sterilized and silicones) is fed through in feed Turn Table with suitably guided on the moving S.S. flat conveyor belt at the required speed for feeding. The filling head is mounted on the machine top plate. When the bottle reaches the filling station, it will be held by the pneumatic bottle holder. Immediately it will be sensed by the bottle sensor as soon as it gets the signals from the sensor magnetic clutch starts to rotate which is mounted on the auger shaft. It will fill the desired amount of powder into the bottle through the auger. After filling of bottle pneumatic piston goes back and releases the bottle to move on the conveyor. The main advantage of this machine is Pneumatic bottle holding system is directly connected with Auger rotation, so till the bottle get filled with powder as per set value, the pneumatic system will not going to release the bottle.

Features Automatic Auger Powder Filling Machine:

  • Heavy duty base with robust construction off S.S. matt finished body
  • Suitable for 50 gm to 1000 gm powder filling with the help of change parts
  • Microcontroller based system with the latest technology
  • Multiple Filling range with the arrangement of different syringes and change parts
  • No container No fill arrangement
  • Easy and accurate adjustments of fill desired quantity with the help of change parts
  • Various models available as per output speed requirement (1 / 2/ 4 head)
  • Machine can be synchronized with Aijet Washing, Visual Inspection, Capping, Induction Sealing machine
  • Suitable for Pharmaceuticals, Ayurvedic, Nutraceutical, Chemical, Food, Cosmetics industries

We also offer Automatic Capping Machine. To know more click here.


There are no reviews yet.

Be the first to review “Automatic Auger Powder Filling Machine”

Augur Powder Filling Machine

Powder Filling Machine

Technical Details

Number Of Filling Head 1 / 2 / 4 / 6
Number of Inner Head NA
Number of Sealing Head NA
Number of Applicator NA
Production / Rate 20 To 40 / 40 To 60 / 60 To 80 / 80 To 100 Bottle /Min (Depend On Fill Size And Material Characteristic)
Fill Size 50 gm to 1000 gm (With the help of change parts)
Type of Product Plastic, Glass, HDPE bottles, tins and containers
Type of Filling Material Dry Powder Syrup, Granules, Food Powders, Cosmetic Powders, Chemical Powders
Type of Seal NA
Type of Label NA
Label Specification NA
Material Contact Part SS 316
Material Non-Contact Part SS 304, SS Cladded MS Body Plate
Type of Technology Linear, Controller Based / PLC Based
