Semi Automatic Liquid Filling Machine
Filling Range: 5 ml to 1 Liter (With the help of Change Parts)
Output: 12 to 15 bottles per minute for 1 Liter. (Depending upon Liquid and Bottle)
Applicable Industry :
Pharmaceutical, Ayurvedic, Nutraceuticals, Cosmetic Lubricant Oil, Edible Oil, Ghee, Dairy Products, Chemical, Cleaning Material, Agrochemical, Pesticides, Food and Beverages, Dairy, Juice and relevant
Description:

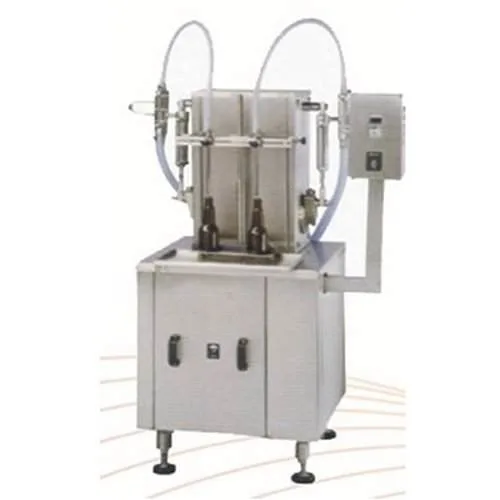

The semi automatic volumetric liquid filling machine is mechanical machine works on volumetric principle and is fitted with two syringes on the sides. The desired volume can be adjusted by increasing or decreasing the eccentricity. This multi function multi featured machine meets the custom requirements of filling of liquid material in glass, plastic and aluminum bottles.
Operation of Semi Automatic Liquid Filling Machine:
Bottles have to place manually below the filling nozzles at the tray of the machine. Where motor operated syringes fill desired preset volume in the bottle, bottle guides are provided to precisely match for centering of the bottle below nozzle to avoid spillage of liquid on the bottle.
The dosing block is fitted below syringes. By that fill size can be easily set.
Features of Semi Automatic Liquid Filling Machine:
- Unique table top machine suitable for small output
- Low Power Consumption
- Compact and versatile unit S.S. matt finished body
- Suitable for different shape and size containers
- Easy and accurate adjustments of fill desired quantity with the help of change parts
- Reciprocating Filling Nozzle with self-centering device to avoid Foaming.
- Machine can be synchronized with Washing, Visual Inspection, Capping, Induction Sealing machine
We also offer Semi Automatic Paste Filling Machine. To know more click here.
You must be logged in to post a review.
Technical Details
| Number Of Filling Head | 2 |
| Number of Inner Head | NA |
| Number of Sealing Head | NA |
| Number of Applicator | NA |
| Production / Rate | 12 To 40 Bottle /Min (Depend On Fill Size And Material Characteristics and Efficiency of Operator) |
| Fill Size | 5 ml to 1000 ml (with the help of change parts) |
| Type of Product | Plastic, Glass, HDPE bottles, tins and containers, Pouches |
| Type of Filling Material | Liquid, Hot, Cold |
| Type of Seal | NA |
| Type of Label | NA |
| Label Specification | NA |
| Material Contact Part | SS 316 |
| Material Non-Contact Part | SS 304, SS Cladded MS Body Plate |
| Type of Technology | Syringe based, Controller Based |
